Includes 7th axis

LOW HOURS

$30,000.00 CAD, (AS IS)

ships from: Quebec, Canada

• Manufacturer = Fanuc

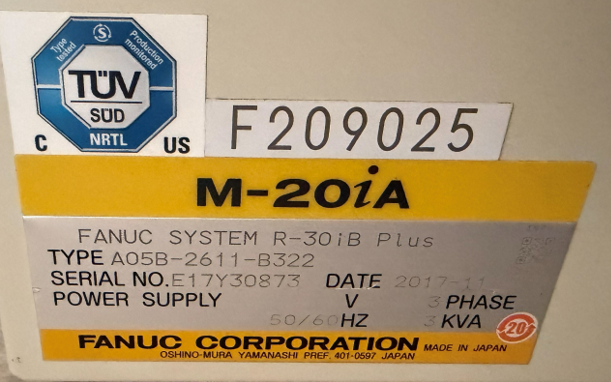

• Controller = R30iB

• Reach= 1811 mm

• Payload = 20 kg

• Axis = 6

• Year of Mfg = 2017

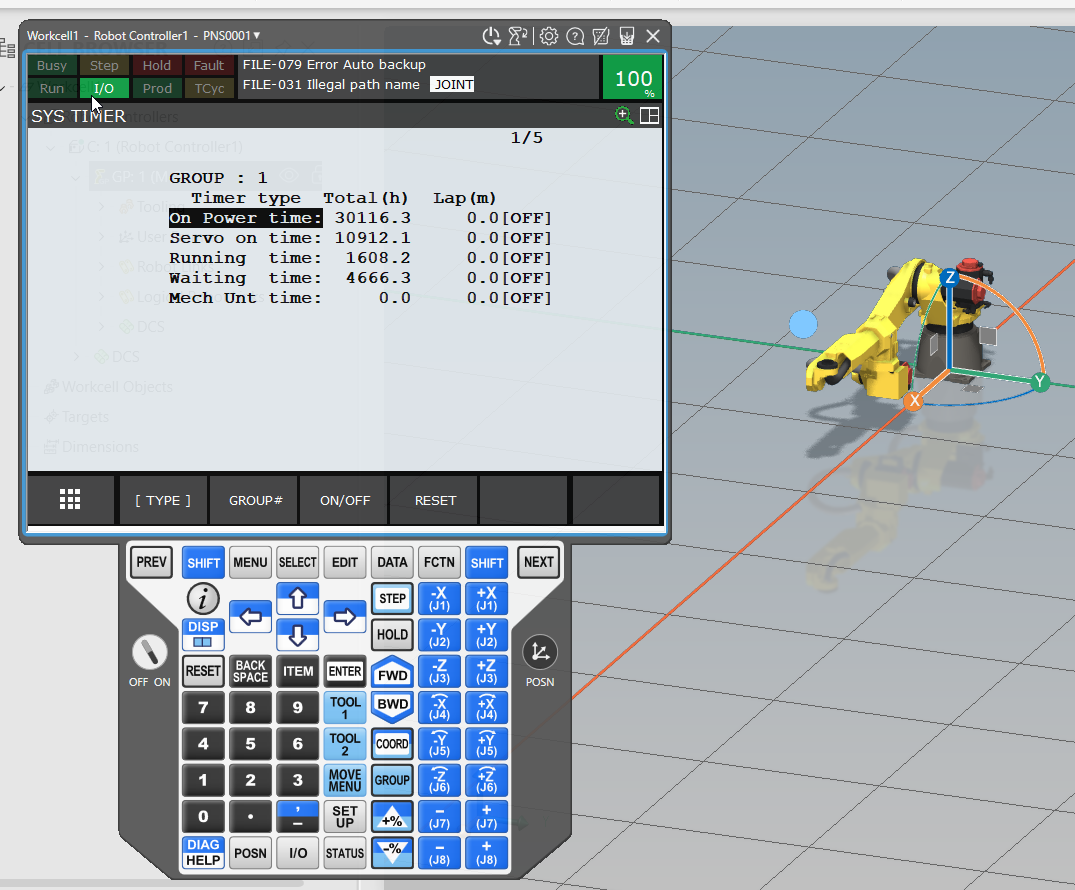

• Hours = 1,608

• Voltage = 480v

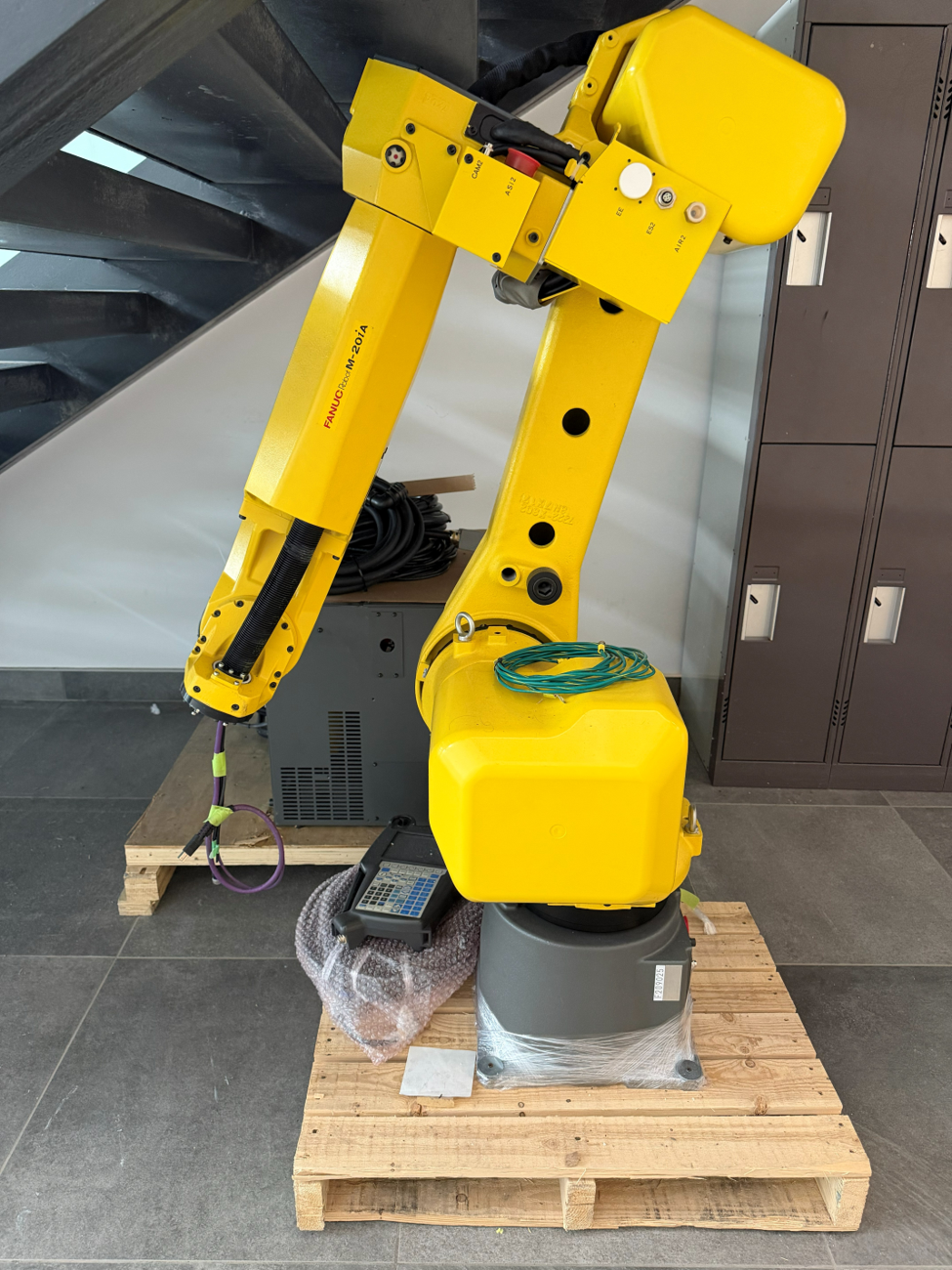

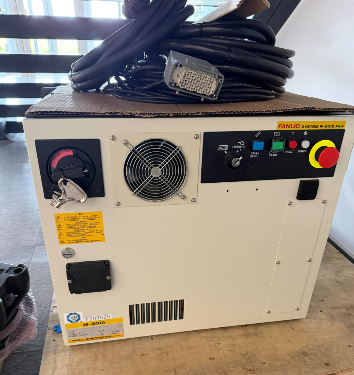

The FANUC M-20iA with R-30iB controller is a high-performance industrial robot known for its speed, precision, and versatility across a wide range of automation applications. Its 6-axis articulated arm offers a 20 kg payload capacity and a reach of up to 1811 mm, making it well suited to material handling, machine tending, and assembly. The compact design allows easy integration into tight workspaces. The R-30iB controller provides advanced motion control, user-friendly programming, and robust connectivity for seamless integration into modern manufacturing environments.

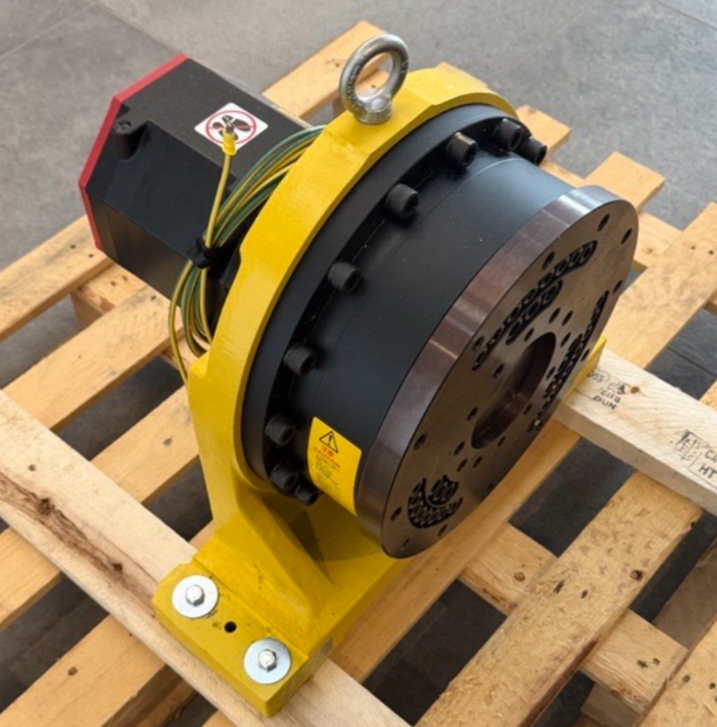

The system is further enhanced with a FANUC 7th axis in the form of a rotary positioner, fully integrated and controlled through the R-30iB. Because the positioner is coordinated with the robot’s own motion, the part can be rotated and presented at the optimal angle while the arm works on it. This improves access to multiple sides of a workpiece, supports smooth, synchronized motion, and reduces the need for re-fixturing or manual repositioning. The result is shorter cycle times, better consistency, and greater flexibility from a single robot cell.

Buyers pay all shipping, customs duties, taxes & brokerage fees.
